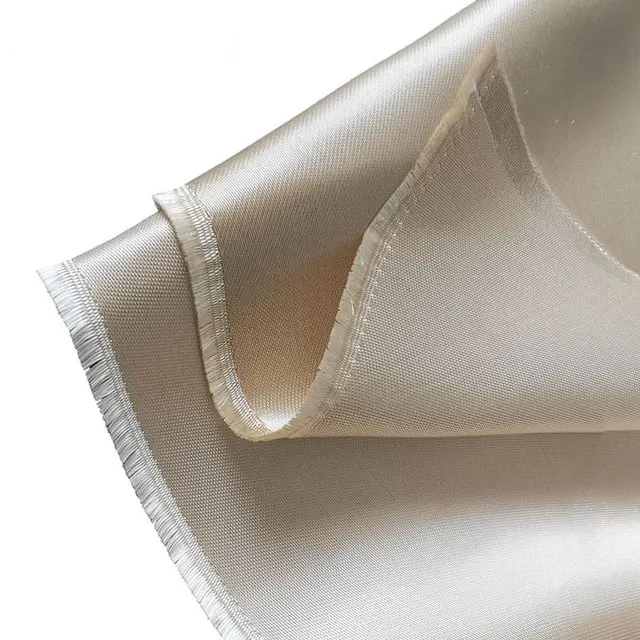

High Silica Fabric
Description
Our Silica fabric is a type of high-performance textile made from silica fibers, which are derived from silicon dioxide (SiO₂). Known for its exceptional heat resistance and thermal insulation properties, silica fabric is used in a variety of demanding applications where high temperatures and harsh conditions are present.
Specification
- Thickness: 0.20mm ~ 1.30mm
- Width: 920mm~1500mm
Normal Width: 1000mm,1200mm, 1500mm
- Color: White/ Tan
- Packing: Plastic Films or Cartons , Pallets
- Roll Length: 50yds / 50m / Customized
Application
- High-Temperature Insulation: Used in industries like metalworking, glass production, and aerospace, where it insulates equipment, pipelines, and structures exposed to extreme heat.
- Protective Gear: Employed in fire-resistant clothing, heat shields, and welding blankets to protect workers from high temperatures and molten metals.
- Fireproof Covers and Linings**: Utilized in applications requiring fireproofing, such as in furnaces, kilns, and industrial ovens.
- Thermal Barriers: Applied as a thermal barrier in automotive and aerospace components to protect sensitive parts from excessive heat.
- Electrical Insulation: Used in some high-temperature electrical insulation applications due to its non-conductive properties.
Recommended Specification
| Product Code | Total Weight | SiO2 | Thickness | Working Temp. | |
|---|---|---|---|---|---|
| HS600 | 600G/m² | 18oz/yd² | 96% | 0.65mm | 1000°C |
| HS880 | 880G/m² | 26oz/yd² | 96% | 1.00mm | 1000°C |
| HS1100 | 1100G/m² | 32.50/yd² | 96% | 1.30mm | 1000°C |
| MS600 | 600G/m² | 18oz/yd² | 76% | 0.65mm | 800°C |
| MS1100 | 1100G/m² | 32.50/yd² | 76% | 1.30mm | 800°C |
